Over 70% of new broadband deployments in urban U.S. projects now call for fiber-to-the-home. This accelerated move toward full-fiber networks shows the urgent need for reliable production equipment.
SZ Stranding Line
FTTH Cable Production Line
Fiber Secondary Coating Line
Shanghai Weiye Optic Fiber Communication Equipment Co (www.weiye-ofc.com) provides automated FTTH cable production line systems for the United States market. Their turnkey FTTH Cable Production Line for High-Speed Fiber Optics integrates machines and control systems. It manufactures drop cables, indoor/outdoor cables, and high-density units for telecom, data centers, and LANs.
This advanced FTTH cable making machinery delivers measurable business value. This system offers higher throughput together with consistent optical performance using low attenuation. This line also aligns with IEC 60794 and ITU-T G.652D / G.657 standards. Customers benefit from reduced labor costs and material waste through automation. Full delivery services cover installation as well as operator training.
The FTTH cable production line package features fiber draw tower integration, a fiber secondary coating line, and a fiber coloring machine. It also covers SZ stranding line, fiber ribbon line, compact fiber unit assembly, cable sheathing line, armoring modules, and testing stations. Control and power specs typically use Siemens PLC with HMI, operating at 380 V AC ±10% and modular power consumption up to roughly 55 kW depending on configuration.
Shanghai Weiye’s customer support model offers on-site commissioning by experienced engineers, remote monitoring, as well as rapid troubleshooting. The line further provides lifetime technical support and operator training. Clients are typically required to coordinate engineer logistics as part of standard supplier practice when ordering from FTTH cable machine suppliers.
Core Takeaways
- FTTH cable line solutions meet growing U.S. demand for fiber-to-the-home deployments.
- Integrated turnkey packages from Shanghai Weiye combine automation, standards compliance, and operator training.
- Modular configurations use Siemens PLC + HMI and operate near 380 V AC with up to ~55 kW power profiles.
- Integrated modules cover drawing, coating, coloring, stranding, ribbone, sheathing, armoring, and testing.
- Advanced FTTH cable machinery reduces labor, waste, and improves optical consistency.
- Technical support includes on-site commissioning, remote diagnostics, and lifetime technical assistance.
Understanding FTTH Cable Line Technology
The fiber optic cable production process for FTTH requires precise control at every stage. Manufacturers use integrated lines that combine drawing, coating, stranding, and sheathing. This method boosts yield and speeds up market entry. It meets the needs of both residential and enterprise deployments in the United States.
Below, we outline the core components and technologies driving modern manufacturing. Each module must operate with precise timing and reliable feedback. The choice of equipment shapes product quality, cost, and flexibility for various cable designs.
Core Components In Modern Fiber Optic Cable Manufacturing
Secondary coating lines apply dual-layer coatings, often 250 µm, using fast-cycle UV curing. Tight buffering as well as extrusion systems deliver 600–900 µm jackets for indoor as well as drop cables.

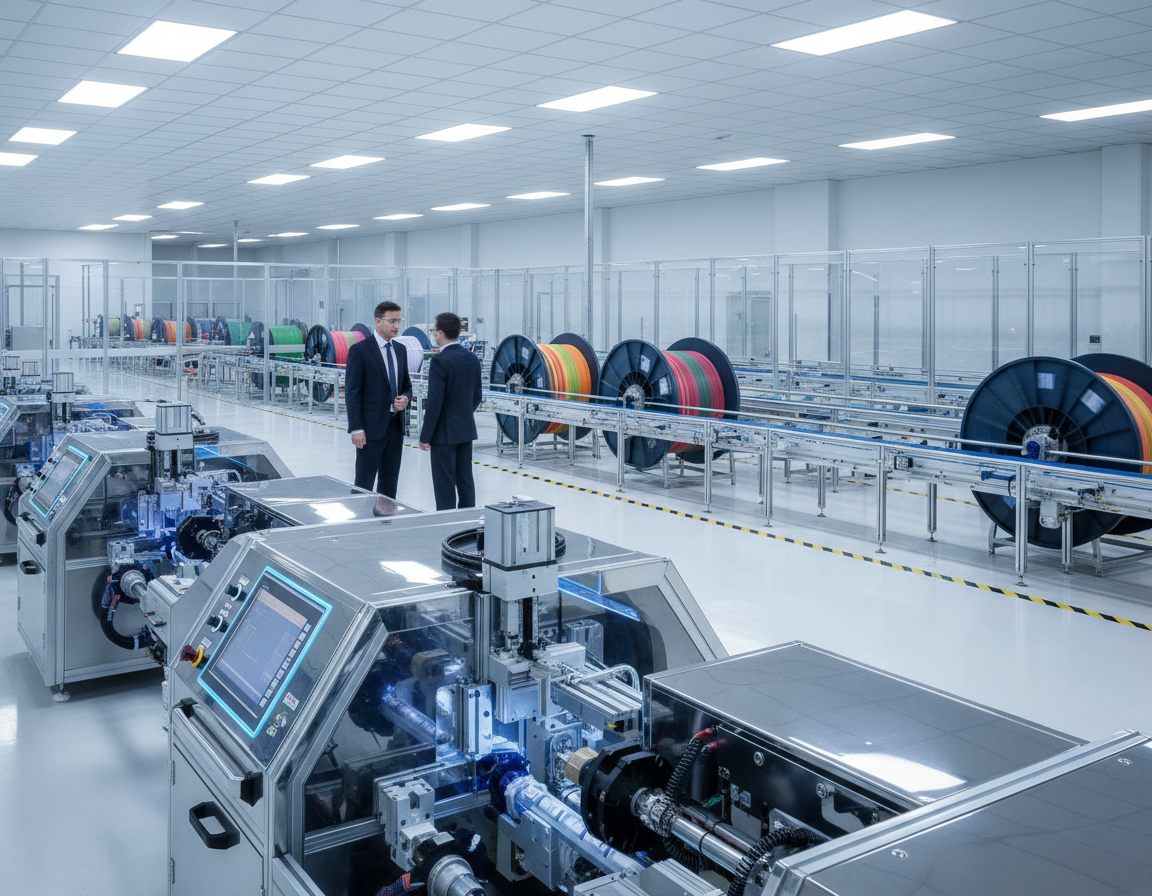

SZ stranding lines use servo-controlled pay-off and take-up units to handle up to 24 fibers with accurate lay length. Fiber coloring machines use multi-channel UV curing to mark fibers to industry color codes.
Sheathing together with extrusion stations produce PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs and UV dryers stabilize profiles before testing.
How Production Systems Evolved From Traditional To Advanced
Early plants used manual and semi-automatic modules. Lines were separate, featuring hand transfers together with basic controls. Current facilities shift toward PLC-controlled, synchronized systems using touchscreen HMIs.
Remote diagnostics and modular turnkey setups enable rapid changeover between simplex, duplex, ribbon, together with armored formats. That move supports automated fiber optic cable manufacturing and reduces labor dependence.
Key Technologies Powering Industry Innovation
High-precision tension control, based on servo pay-off together with take-up, keeps geometry stable during fast-cycle runs. Multi-zone temperature control using Omron PID and precision heaters supports consistent extrusion output quality.
High-speed UV curing and water cooling improve profile stabilization while reducing energy employ. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, together with aging data.
| Process | Typical Module | Advantage |
|---|---|---|
| Optical fiber drawing | Automated draw tower with tension feedback | Stable core diameter and reduced attenuation |
| Fiber secondary coating | UV-curing dual-layer coaters | Consistent 250 µm coating for durability |
| Coloring | Fiber coloring unit with multiple channels | Accurate identification for splicing and installation |
| Stranding | Servo-controlled SZ stranding line (up to 24 fibers) | Accurate lay length across ribbon and loose tube designs |
| Sheathing & extrusion | Efficient extruders with multi-zone heaters | Precise jacket dimensions in PE, PVC, or LSZH |
| Cable armoring | Steel tape/wire armoring units | Stronger mechanical protection for outdoor applications |
| Cooling and curing | Water troughs and UV dryers | Quicker profile setting with fewer defects |
| Testing | Inline attenuation and geometry measurement | Live quality control and compliance reporting |
Compliance with IEC 60794 and ITU-T G.652D/G.657 variants is standard. Manufacturers typically certify to ISO 9001, CE, and RoHS. These credentials support diverse applications, from FTTH drop cable production to armored outdoor runs and data center high-density solutions.
Choosing cutting-edge fiber optic production equipment as well as modern manufacturing equipment allows firms meet tight tolerances. This choice enables efficient automated fiber optic cable production as well as positions companies to deliver on scale together with quality.
Key Equipment For Fiber Secondary Coating Line Operations
This secondary coating stage is critical, giving drawn optical fiber its final diameter together with mechanical strength. This system prepares the fiber for stranding as well as cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, together with surface output quality. This protects the glass during handling.
Producers aiming for high-yield, fast-cycle fiber optic cable manufacturing must match material, tension, as well as curing systems to process requirements.
High-speed secondary coating processes rely on synchronized pay-off, coating heads, and UV ovens. Advanced systems achieve high production rates while minimizing excess loss. Precise tension control at pay-off as well as winder stages prevents microbends together with ensures consistent coating thickness across long runs.
Single together with dual layer coating applications meet different market needs. Single-layer setups offer basic mechanical protection as well as a simple optical fiber cable production machine footprint. Dual-layer lines combine a harder inner layer using a softer outer layer to improve microbend resistance and stripability. That is useful when fibers are prepared for connectorization.
Temperature control and curing systems are critical to final fiber performance. Multi-zone heaters and Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens and water trough cooling stabilize the coating profile and reduce variation in excess loss; targets for high-quality single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.
Key components from trusted suppliers improve uptime and precision in an optical fiber cable production machine. Extruders such as 50×25 models, screws and barrels from Jinhu, and bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, and PLC/HMI platforms from Siemens or Omron provide robust control and monitoring for continuous runs.
Operational parameters shape preventive maintenance as well as process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation together with curing speeds are adjusted to material type as well as coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable and supports reliable high-speed fiber optic cable manufacturing.
Fiber Draw Tower And Optical Preform Processing
The fiber draw tower is the core of optical fiber drawing. It softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand using precise diameter control. That process step sets the refractive-index profile as well as attenuation targets for downstream processes.
Process control on the tower uses real-time diameter feedback and tension management. That prevents microbends. Cooling zones and closed-loop systems keep geometry stable during the optical fiber cable production process. Modern towers log metrics for traceability and rapid troubleshooting.
Output consistency supports single-mode fibers such as ITU-T G.652D and bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.
Integration using secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment as well as tension as the fiber enters coating, coloring, or ribbon count stations. That connection ensures the optical fiber drawing step feeds smoothly into cable assembly.
Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, and geometric tolerances. These integrated features help manufacturers scale toward high-speed fiber optic cable production while maintaining ISO-level quality checks.
| Feature | Purpose | Target Value |
|---|---|---|
| Furnace with multiple zones | Uniform preform heating for stable glass viscosity | Consistent draw speed and refractive profile |
| Real-time diameter control | Control core/cladding geometry while reducing attenuation | ±0.5 μm tolerance |
| Cooling and tension control | Protect fiber strength while preventing microbends | Defined tension by fiber type |
| Automatic pay-off integration | Secure handoff to secondary coating and coloring | Synchronized feed rates for zero-slip transfer |
| Inline test stations | Verify loss, strength, and geometry | ≤0.2 dB/km loss after coating for single-mode |
Advanced SZ Stranding Line Technology In Cable Assembly
This SZ stranding method creates alternating-direction lays that cut axial stiffness together with boost flexibility. That makes it ideal for drop cables, building drop assemblies, and any application that needs a flexible core. Manufacturers moving toward automated fiber optic cable manufacturing rely on SZ approaches to meet tight bend together with axial tolerance specs.
Precision in the stranding stage protects optical performance. Modern precision stranding equipment uses servo-driven carriers, rotors, and modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control and allow quick reconfiguration for different cable types.
Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, together with haul-off units maintain constant linear speed and target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 together with 20 N.
Integration using a downstream fiber cable sheathing line streamlines manufacturing and reduces handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs using stranding through a Siemens PLC. Cooling troughs together with UV dryers stabilize the jacket profile right after extrusion to prevent ovality as well as reduce mechanical stress.
Optional reinforcement and armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire with adjustable tension to meet specific mechanical ratings.
Built-in quality control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, and optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows and cut rework.
This combination of a robust sz stranding line, high-end precision stranding equipment, as well as a synchronized fiber cable sheathing line delivers a scalable solution for manufacturers. This blend raises throughput while protecting optical integrity as well as mechanical performance in finished cables.
Fiber Coloring And Identification System Technology
Coloring and identification are critical in fiber optic cable production. Accurate color application minimizes splicing errors and accelerates field work. Modern equipment combines fast coloring with inline inspection, ensuring high throughput and low defect rates.
Today’s high-speed coloring technology supports multiple channels and quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning with secondary coating lines. UV curing at speeds over 1500 m/min ensures color and adhesion stability for both ribbon and counted fibers.
Below, we discuss standards and coding prevalent in telecom networks.
Color coding adheres to international telecom standards for 12-color cycles and ribbon schemes. This compliance aids technicians in installation and troubleshooting. Consistent coding significantly reduces field faults and accelerates network deployment.
Quality control integrates high-spec fiber identification systems into line output lines. In-line cameras, spectrometers, as well as sensors detect color discrepancies, poor saturation, as well as coating flaws. The PLC/HMI interface alerts to issues as well as can pause the line for correction, safeguarding downstream processes.
Machine specifications are vital for uninterrupted runs as well as material compatibility. Leading equipment accepts UV-curable pigments as well as inks, compatible using common coatings and extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.
Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye and other established vendors offer customizable channels, remote diagnostics, together with onsite training. That support model cuts ramp-up time as well as enhances the reliability of fiber optic cable manufacturing equipment.
Fiber Solutions For Metal Tube Production
Metal tube and metal-armored cable assemblies provide robust protection for fiber lines. They are ideal for direct-buried and industrial applications. The controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.
Processes depend on precision filling and centering units. These modules, in conjunction with fiber optic cable manufacturing equipment, ensure concentric placement and controlled tension during insertion.
Armoring steps involve the use of steel tape or wire units with adjustable tension and wrapping geometry. This method benefits armored fiber cable production by preventing compression of fiber elements. It also keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.
Coupling armoring featuring downstream sheathing together with extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable manufacturing machine must handle pay-off reels sized for reinforcement as well as align featuring sheathing tolerances.
Quality checks include crush, tensile, as well as aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing ensures long-term reliability in field conditions.
Turnkey solutions from established manufacturers integrate metal tube handling with SZ stranding and sheathing lines. These solutions include operator training as well as maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.
Buyers should consider compatibility with armored fiber cable production modules, ease of changeover, and service support for field upgrades. These factors reduce downtime and protect investment in an optical fiber cable production machine.
Fiber Ribbon Line And Compact Fiber Unit Manufacturing
Advanced data networks require efficient assemblies that pack more fibers into less space. Manufacturers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. That production method relies on parallel processes together with precise geometry to meet the needs of MPO trunking as well as backbone cabling.
Advanced equipment ensures accuracy and speed in production. A fiber ribbone line typically integrates automated alignment, epoxy bonding, precise curing, and shear/stacking modules. In-line attenuation and geometry testing reduce rework, maintaining high yields.
Compact fiber unit production focuses on tight tolerances and material choice. Extrusion and buffering create compact fiber unit constructions with typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, and LSZH for durability and flame performance.
High-density cable solutions aim to enhance rack and tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter and simplify routing. They are compatible with MPO trunking and high-count backbone systems.
Production controls and speeds are critical for throughput. Current lines can reach up to 800 m/min, depending on configuration. PLC together with HMI touch-screen control enable quick parameter changes and synchronization across multiple lines.
Quality and customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, and turnkey integration with sheathing and testing stations support bespoke high-speed fiber cable production line requirements.
| Feature | Fiber Ribbon System | Compact Fiber Unit | Benefit To Data Centers |
|---|---|---|---|
| Typical operating speed | Up to roughly 800 m/min | Up to 600–800 m/min | Greater throughput for large-scale deployments |
| Core processes | Automated alignment, epoxy bonding, curing | Extrusion, buffering, and tight-tolerance winding | Consistent geometry and lower insertion loss |
| Primary materials | Specialty tapes and bonding resins | PBT, PP, plus LSZH buffer and jacket materials | Long-term reliability and safety compliance |
| Quality testing | Real-time attenuation and geometry inspection | Dimensional control and tension monitoring | Reduced field failures and faster deployment |
| Line integration | Sheathing and splice-ready stacking | Modular units for high-density cable solutions | Simplified MPO trunking and backbone construction |
Optimizing High-Speed Internet Cables Production
Efficient high-output fiber optic cable production relies on precise line setup together with strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, and tension systems. This helps ensure optimal output for flat, round, simplex, and duplex FTTH profiles.
FTTH Application Cabling Systems
FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- and 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.
Extruder models, such as a 50×25, control jacket speeds between 100 and 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.
Fiber Pulling Process Quality Assurance
Servo-controlled pay-off together with take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, as well as crush together with aging cycles. These tests verify performance.
Key control components include Siemens PLCs and Omron PID controllers. Motors from Dongguan Motor and inverters from Shenzhen Inovance ensure stable operation and easier maintenance.
How Optical Fiber Drawing Meets Industry Standards
A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D and G.657 standards. The goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-quality single-mode fiber.
Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, and local after-sales support. Top FTTH cable production line manufacturers provide turnkey layouts, remote monitoring, and operator training. This reduces ramp-up time for US customers.
Conclusion
Advanced FTTH cable making machinery integrates various components. These include fiber draw towers, secondary coating, coloring lines, SZ stranding, and ribbon units. It also includes sheathing, armoring, and automated testing for consistent high-speed fiber production. A complete fiber optic cable production line is designed for FTTH and data center markets. It enhances throughput, keeps losses low, and maintains tight tolerances.
For U.S. manufacturers as well as system integrators, partnering using reputable suppliers is key. They should offer turnkey systems featuring Siemens or Omron-based controls. That includes on-site commissioning, remote diagnostics, together with lifetime technical support. Companies like Shanghai Weiye Optic Fiber Communication Equipment Co offer integrated solutions. These systems simplify automated fiber optic cable manufacturing together with reduce time to manufacturing.
Technically, ensure line configurations adhere to IEC 60794 and ITU-T G.652D/G.657 standards. Verify tension and curing settings to meet excess loss targets, such as ≤0.2 dB/km at 1550 nm. Adopt preventive maintenance cycles of roughly six months for reliable 24/7 operation. When planning a new FTTH cable production line, first evaluate required cable types. Collect product drawings and standards, request detailed equipment specs and turnkey proposals, and schedule engineer commissioning and operator training.
